Low Headroom High Speed Garage Door | Full Product Description

Our Low Headroom High Speed Garage Door is professionally engineered for residential, commercial, and light industrial spaces
with limited overhead ceiling clearance. Solving the installation pain point of traditional high-speed doors that require high headroom
space, this optimized low-profile structure perfectly adapts to low-ceiling garages, basement parking areas, shopfronts, and compact
logistics access passages. Adopting premium flame-retardant PVC curtain, high-efficiency XPS thermal insulation, reinforced aluminum
alloy frame and stable industrial drive system, the door integrates fast opening & closing, excellent heat preservation, tight air sealing,
quiet operation and durable wear resistance. All products comply with CE certification standards, delivering stable, energy-saving and
low-maintenance performance for space-limited scenarios.

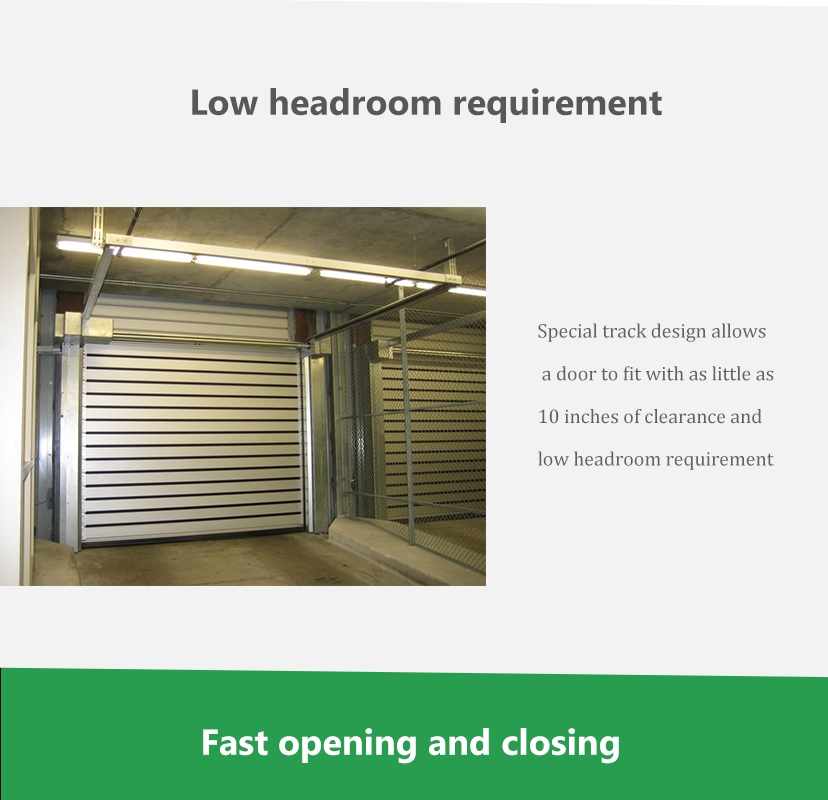

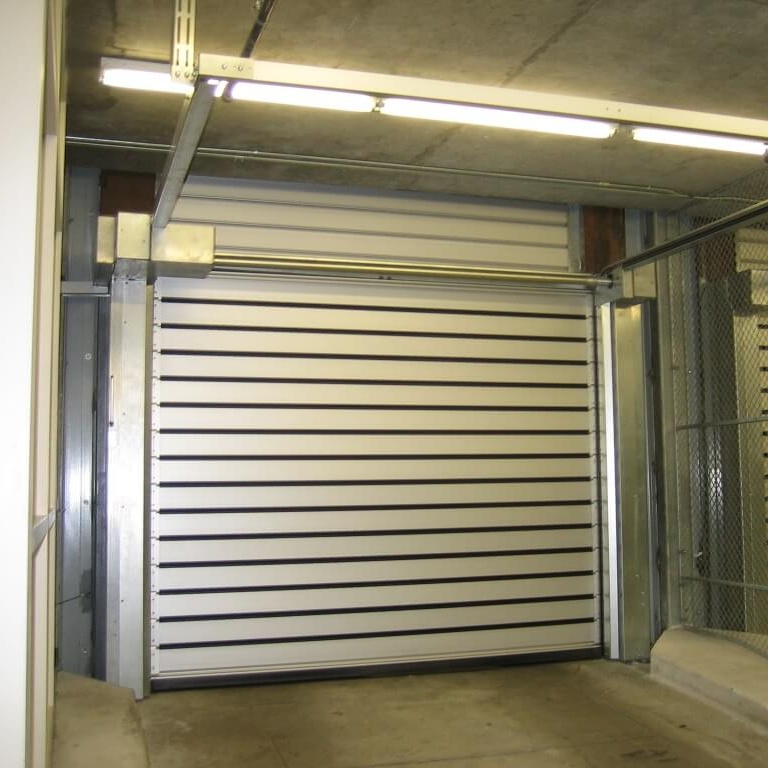

Space-Saving Low Headroom Structural Design

Different from conventional high-speed doors with large overhead space occupation, this low headroom garage door adopts
a customized optimized lifting track system, which greatly reduces the required ceiling clearance and maximizes the use of
vertical space. The whole frame and bottom frame are made of high-straight extruded 6063-T6 aluminum alloy, fixed with
high-strength bolts. The integral non-welding process eliminates structural gaps, welding defects and rust hidden dangers
fundamentally.

The top cover is made of high-quality galvanized steel sheets to enhance structural stability and corrosion resistance.
Equipped with full-circle high-elastic rubber sealing strips on aluminum side rails and bottom edge, the door achieves
360° airtight sealing, effectively preventing dust, wind, rain and cold/hot air penetration. For humid, corrosive and
special working environments, AISI 304/316 stainless steel structural accessories are optional for upgrade.

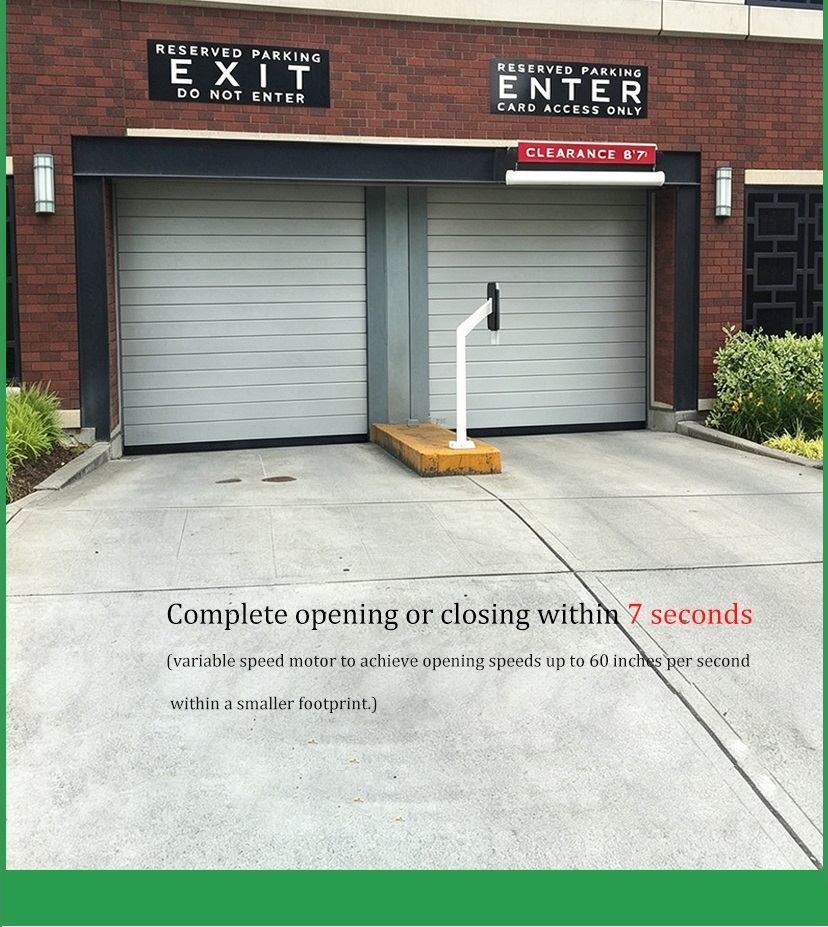

Core powered by an industrial high-torque worm gearbox and dedicated high-speed servo motor, this door features
ultra-fast opening and closing response, completely different from the slow, sluggish operation of ordinary
garage doors. The high-power drive configuration delivers sensitive instant start, stable rapid lifting and fast closing
without delay or jitter. Motor power ranges from 1HP to 4HP with 380–440V, 3-phase, 50–60Hz working voltage.
The matched power system ensures consistent ultra-high running speed even for large-size doors, supporting long-term
fast cyclic operation.

The optimized three-phase industrial power system is specially designed for high-speed and high-frequency
continuous operation. It supports tens of thousands of rapid start-stop cycles, maintaining stable ultra-fast
opening/closing speed without stalling, overheating, overload or abnormal noise. No speed attenuation occurs
after long-term frequent use. All electrical and structural components meet CE standards, featuring high safety,
strong stability and low failure rate, fully meeting 24/7 uninterrupted fast access demands.

Premium Reinforced Door Curtain

The door curtain is constructed with high-grade VALMEX POLYMAR® industrial flame-retardant PVC material,
featuring 900 gr/m² weight and 1–2 mm thickness with 1100 Dtx density and B6000 Panama weaving technology.
It boasts superior UV resistance, anti-aging, flame-retardant and tear-resistant properties, maintaining stable
physical performance underlong-term outdoor exposure, temperature fluctuation and frequent friction.
Manufactured and tested in strict accordance with SIO-LINE and DIN EN ISO 2286-2 international standards,
the curtain ownsoutstanding mechanical stability. Its tensile strength reaches 4300/4000 N/50 mm (DIN 53354)
and tear strength hits 500/500 N(DIN 53363), effectively resisting daily impact and abrasion, greatly extending the
overall service life of the door.
