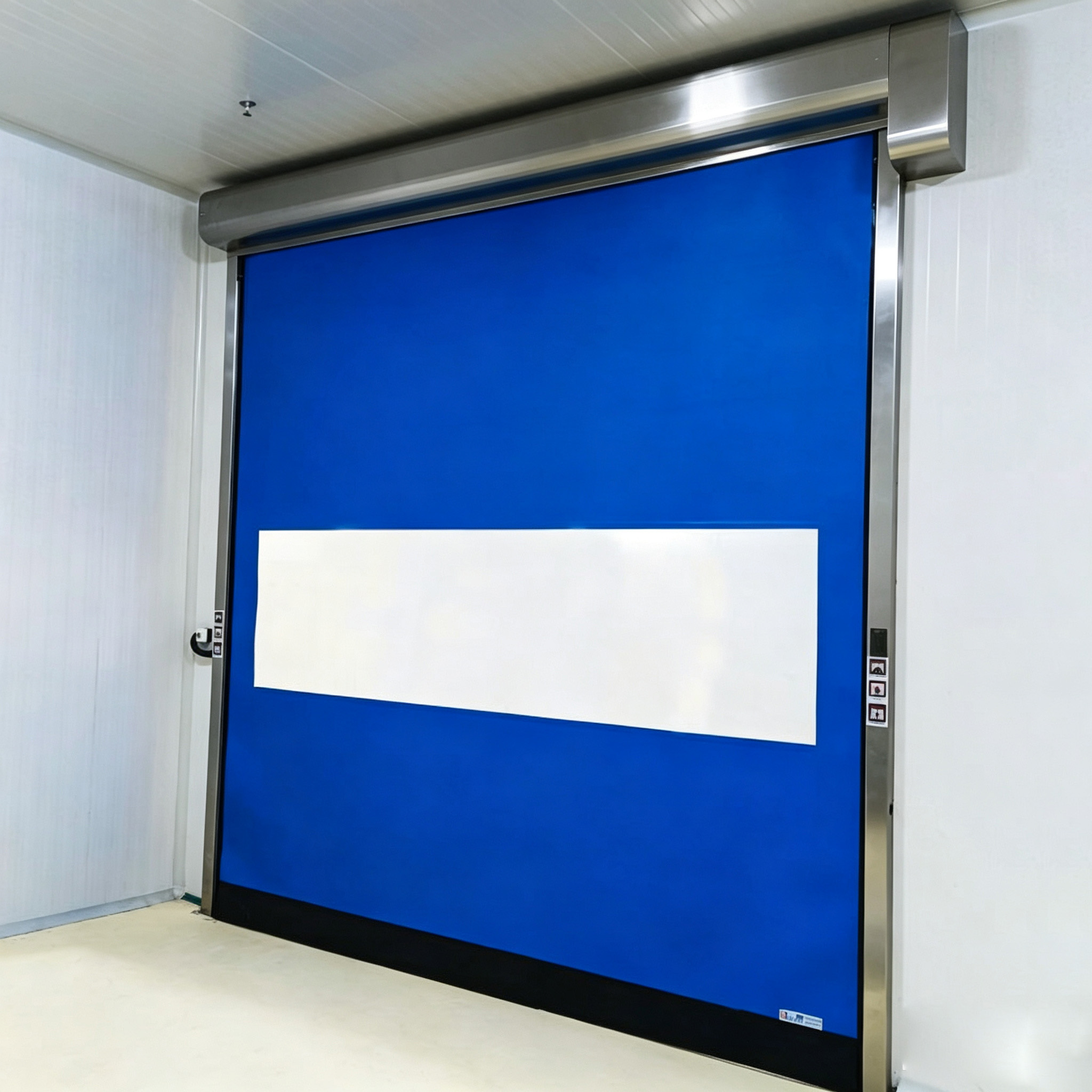

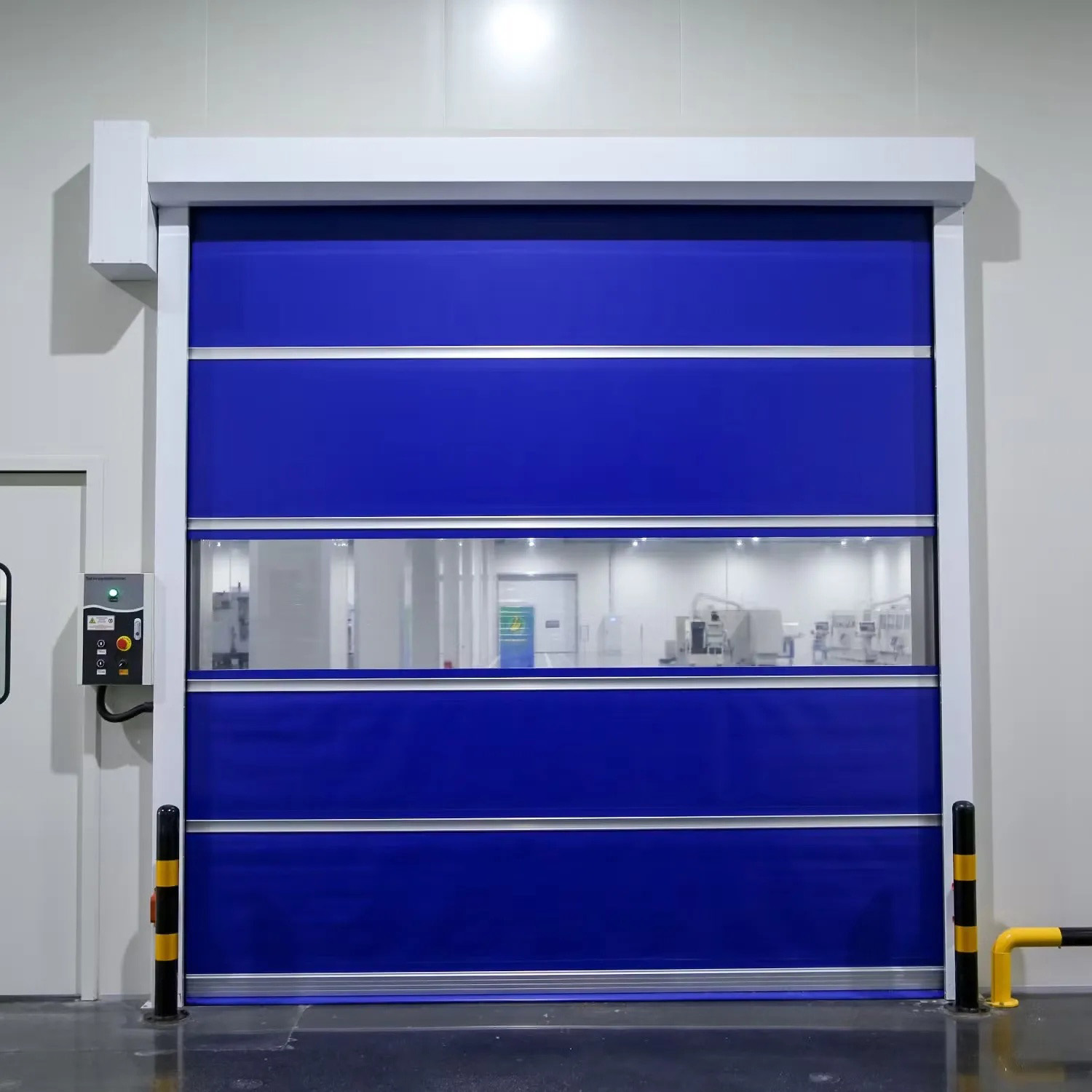

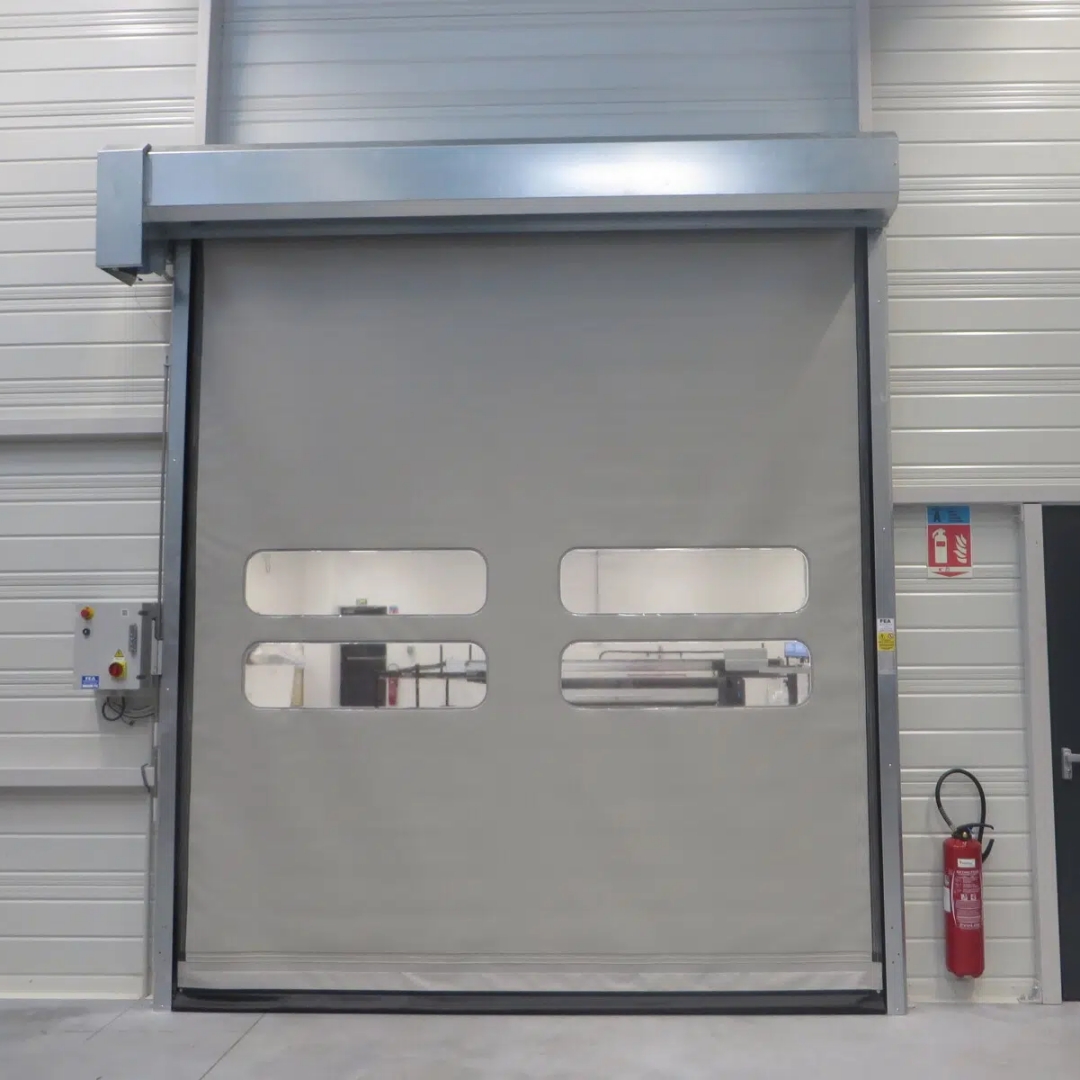

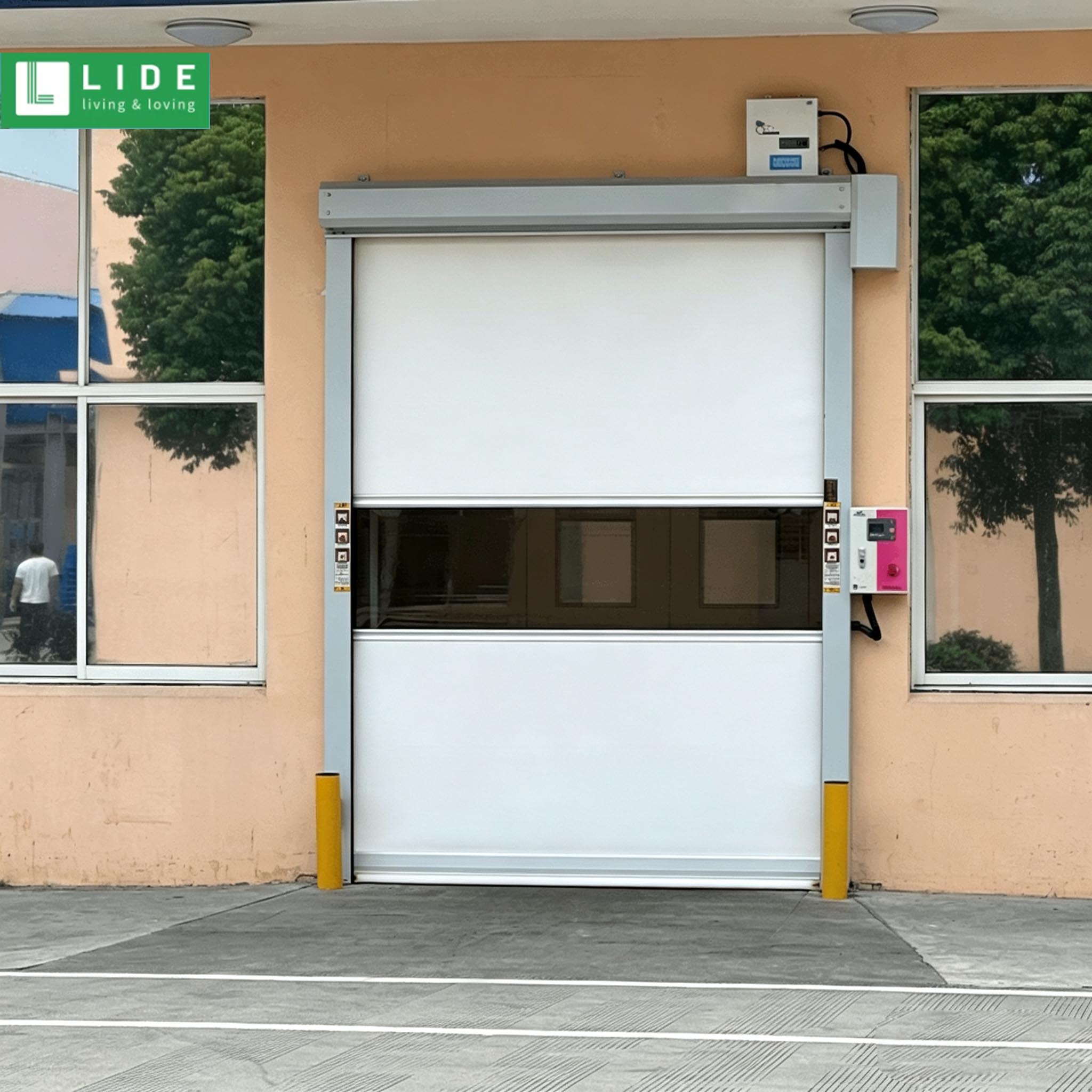

PVC High-Speed Door Rapid Door Fast Door

Our industrial PVC high-speed rolling door is engineered for high-frequency, continuous operation in modern factories,
warehouses, logistics centers, clean rooms, and industrial workshops. Combining high-strength flame-retardant PVC fabric,
premium XPS thermal insulation, stable servo driving system, and durable aluminum alloy structure, this door delivers
outstanding speed, thermal insulation, airtight sealing, sound insulation, and long service life. All components are manufactured
in compliance with CE standards, ensuring reliable, low-maintenance, and energy-efficient performance for harsh industrial
environments.



Parameter

Material:PVC+Painted Steel
Thickness:0.8/1.2/2.0mm
Color:Customization
Max Width:6000
Max Height:8000
Aluminum Color:Customization
Packing:Wooden box
Warranty:5 years
Operation:Electric/Manual/Infrared induction
Open Direction:Up and Down

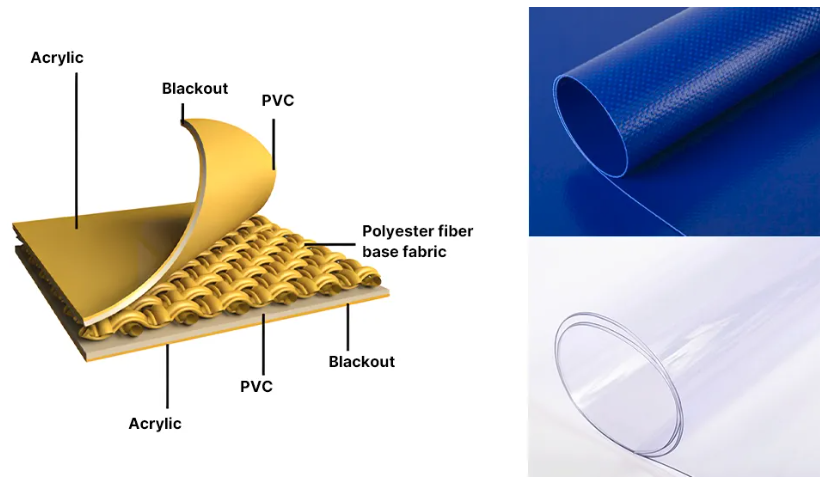

Material Introduction



The door curtain adopts VALMEX POLYMAR® industrial flame-retardant PVC fabric with a weight of 900 gr/m² and
a thickness of 1–2 mm (1100 Dtx, B6000 Panama weave). Featuring excellent UV resistance, anti-aging, and flame-retardant
properties, the fabric maintains stable performance under long-term sunlight exposure and extreme temperature changes.
Strictly tested according to SIO-LINE and DIN EN ISO 2286-2 standards, the curtain provides superior mechanical strength.
The straight tensile strength reaches 4300/4000 N/50 mm (DIN 53354), and the tear strength is 500/500 N (DIN 53363),
effectively resisting impact, friction, and daily mechanical damage for prolonged service life.

◎ PVC High-Speed Door

◎ Electric Control System

◎ Door Curtain

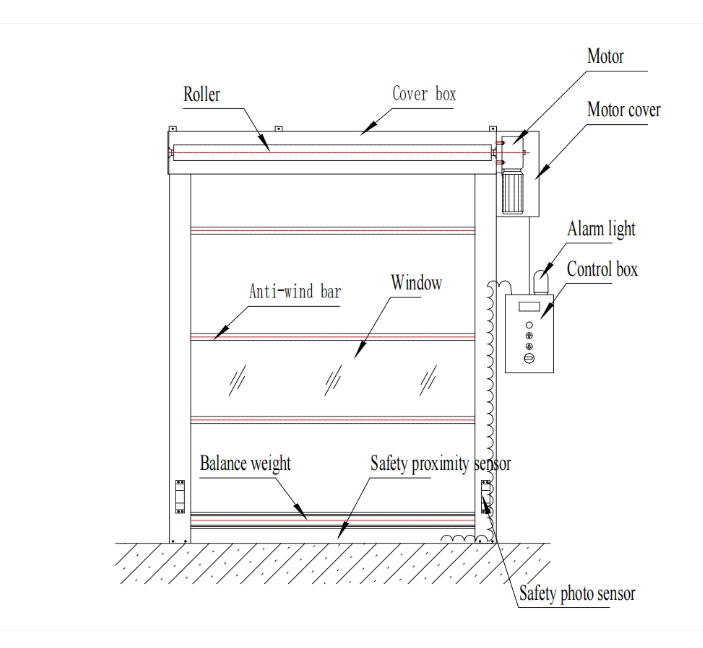

Structure Diagram



The whole door frame and bottom frame are made of high-straight extruded 6063-T6 aluminum alloy, fixed with high-strength
bolts. Adopting an integral no-welding manufacturing process, it eliminates gaps, welding defects, and rust risks fundamentally.
The top cover is made of galvanized steel sheets for enhanced structural durability.
Aluminum side rails are fitted with high-quality rubber sealing strips to achieve all-round airtight isolation, effectively blocking
dust, insects, wind, and hot/cold air convection. For special corrosive or high-standard environments, AISI 304/316 stainless
steel structures are optional to meet customized application demands.

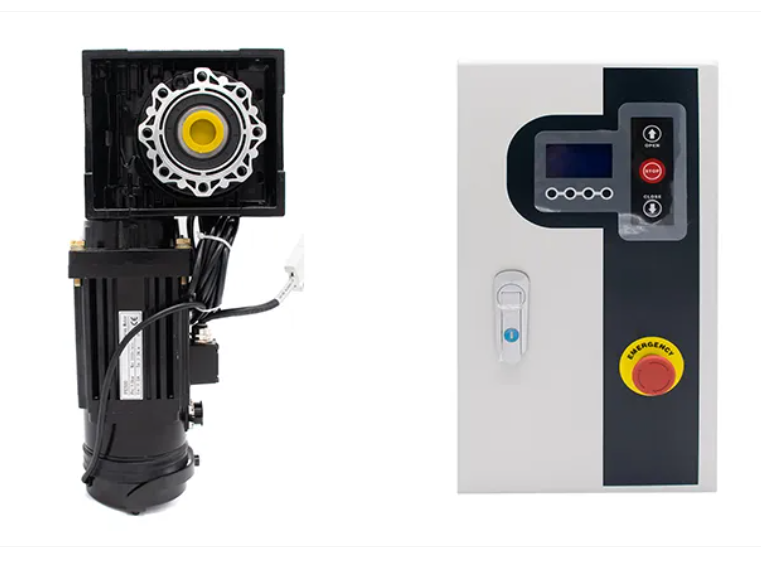

Motor and Controller



Matched with professional industrial worm gearbox with high-torque design, the driving system supports stable and silent
high-frequency operation. Motor power ranges from 1HP to 4HP, with a working voltage of 380–440V, 3-phase, 50–60Hz,
which can be flexibly configured according to different door sizes.
Three-phase power supply design is specially optimized for long-term continuous industrial operation, ensuring stable startup
and frequent opening/closing without overload or failure. All electrical and structural components comply with CE certification
norms, with safe, reliable performance and low failure rate.



Frame and Rails

The PVC high speed door features two sturdy guide rails, a top cover box, and a motor cover, all available in galvanized steel or stainless steel.

Thickness:1.5mm guide rail;1.0mm cover box.

Standard material:Galvanized steel,surface is painted.

Optional material:304 stainless steel or aluminum alloy.

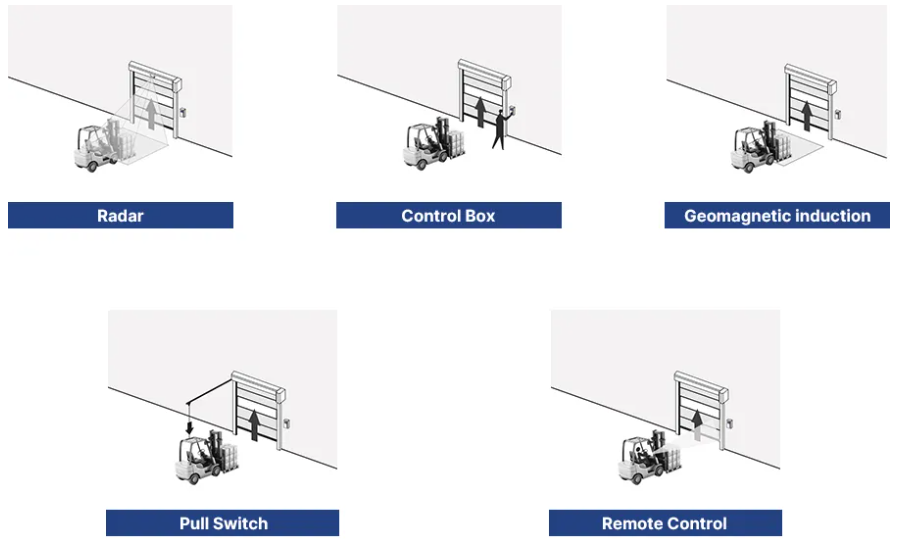

Opening Methods



PVC rapid roll up doors usually offer five different methods for opening, allowing you to choose the one that best suits your operational needs:

Vehicle Loop Detector:

This method automatically opens the door when a vehicle approaches, ensuring seamless entry and exit for transport vehicles without manual intervention.

Radar Sensor:

Ideal for busy areas, the radar sensor detects motion and opens the door, providing a touchless and efficient solution for high-traffic zones.

Push Button:

A simple and reliable method, the push button allows manual control over the door, suitable for situations where precision timing is crucial.

Pull Switch:

The pull switch offers a straightforward and accessible way to open the door, often used in industrial settings where ease of use is paramount.

Remote Control:

For ultimate convenience, the remote control enables the door to be opened from a distance, perfect for environments where mobility is necessary.

Each of these options enhances the functionality of PVC high speed doors, catering to diverse operational requirements and ensuring optimal performance in various settings.
